Pro SP310 SATA 6Gb/s mSATA系列_Shenzhen WINSTECH Electronics Co. Ltd.

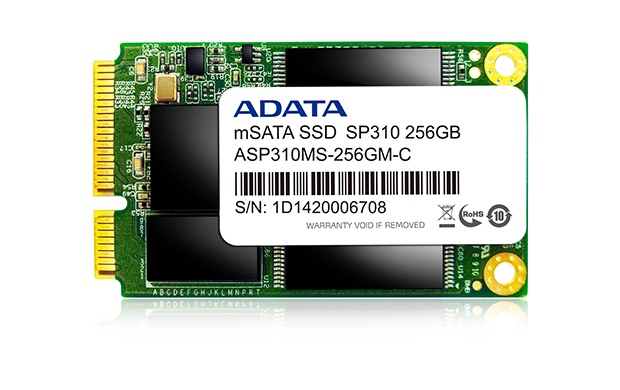

Pro SP310 SATA 6Gb/s mSATA系列

32/64/128GB/256GB

SP310 mSATA 固态硬盘是升级笔记本电脑或桌面计算机的超棒选项。它可带来固态存储设备的所有优点：减少发热与噪音、低耗电，以及更快的传输速度，读取速度最高可达每秒 540MB，写入速度则可达到 280MB。搭配硬盘机使用时，固态硬盘可做为快取磁盘使用，或做为独立的主要储存装置使用 (开机磁盘)。

Capacity	32/64/128GB/256GB
Form Factor	Full size mSATA
NAND Flash	Multi-Level Cell (MLC) NAND Flash Memory
Controller	JMicron JMF-667 series
Dimensions (L x W x H)	50.95 x 30 x 4mm(L × W × T)
Weight	7g
Interface	SATA 6Gb/sec
Performance(Max)	32GB Performance (ATTO) : Read: Up to 365MB/S Write: Up to 50MB/S Multimedia Data Transfer (AS-SSD) Read : Up to 340MB/S Write : Up to 50MB/S MAX 4K read/write IOPS up to 40/15K 64GB Performance (ATTO) : Read: Up to 540MB/S Write: Up to 100MB/S Multimedia Data Transfer (AS-SSD) Read : Up to 490MB/S Write : Up to 100MB/S MAX 4K read/write IOPS up to 60/25K 128GB Performance (ATTO) : Read: Up to 540MB/S Write: Up to 200MB/S Multimedia Data Transfer (AS-SSD) Read : Up to 500MB/S Write : Up to 180MB/S MAX 4K read/write IOPS up to 75/45K 256GB Performance (ATTO) : Read: Up to 540MB/S Write: Up to 280MB/S Multimedia Data Transfer (AS-SSD) Read : Up to 500MB/S Write : Up to 270MB/S MAX 4K read/write IOPS up to 76/68K *传输速度会依 SSD 容量、测试平台的硬件、测试软件及操作系统的不同而有所差异
Operating temperature	0 °C - 70 °C
Storage temperature	-40 °C - 85 °C
Shock resistance	1500G/0.5ms
保固	3 年
