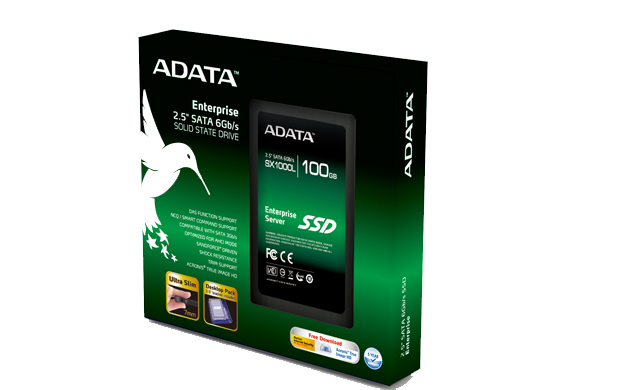

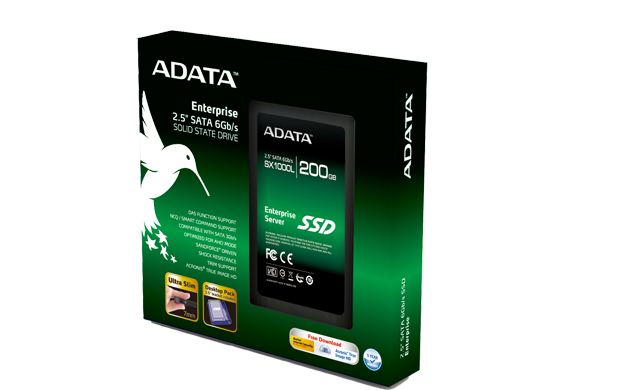

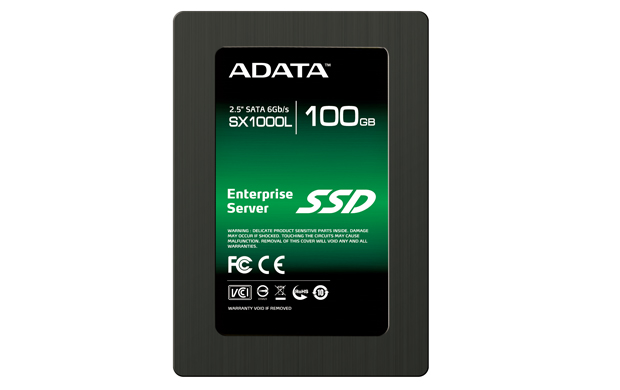

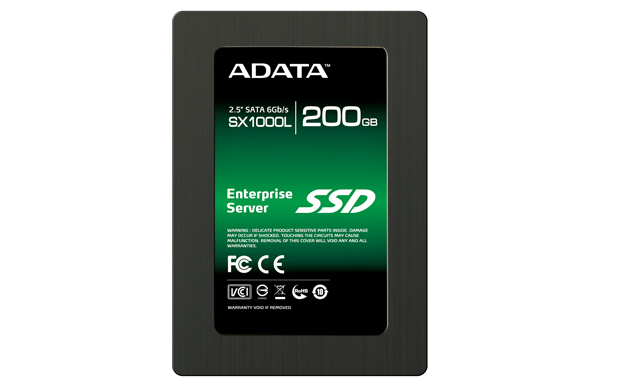

Server SSD SX1000L系列

100GB/200GB/400GB

此系列产品采用最新高速处理器,在连续读写速度的实测结果,最高可达每秒550MB/500MB,而4KB随机读/写入速度更可高达73,000/45,000 IOPS。在容量方面,SX1000L提供消费者100GB 200GB不同容量的选择。SX1000L 系列产品还提供客户可以弹性的调整over-provision 的需求,这是目前市面上极少数厂商提供客户弹性需求的选择。

容量 100GB/200GB/400GB
规格 2.5吋 SATA III 6Gb/s
闪存类型 严格筛选的 MLC NAND 型闪存
主控制器 LSI SandForce SF-2281
Dimensions (L x W x H) 100.25 x 70.1 x 7.0 mm (长 x 宽 x 高)
重量 61 ±1克
接口规范 SATA 6Gb/s
产品性能


100GB Performance (IOmeter) :
Sequential Read : Up to 550MB/s
Sequential Write : Up to 160MB/s
Maximum 4K read/write IOPS up to 89K/30K

200GB Performance (IOmeter) :
Sequential Read : Up to 550MB/s
Sequential Write : Up to 340MB/s
Maximum 4K read/write IOPS up to 92K/39K

400GB Performance (IOmeter) :
Sequential Read : Up to 560MB/s
Sequential Write : Up to 340MB/s
Maximum 4K read/write IOPS up to 76K/22K

*传输速度会依 SSD 容量、测试平台的硬件、测试软件及操作系统的不同而有所差异

电源功耗 0.35W 待机/0.6W 运行
工作温度 0 °C - 70 °C
储存温度 -40 °C - 85 °C
耐震强度 1500G/0.5ms
平均无故障时间 1,500,000 小时
ECC 纠错

每512字节扇区多达 55 位元校验纠错 (BCH)

*取决于正确的配置
